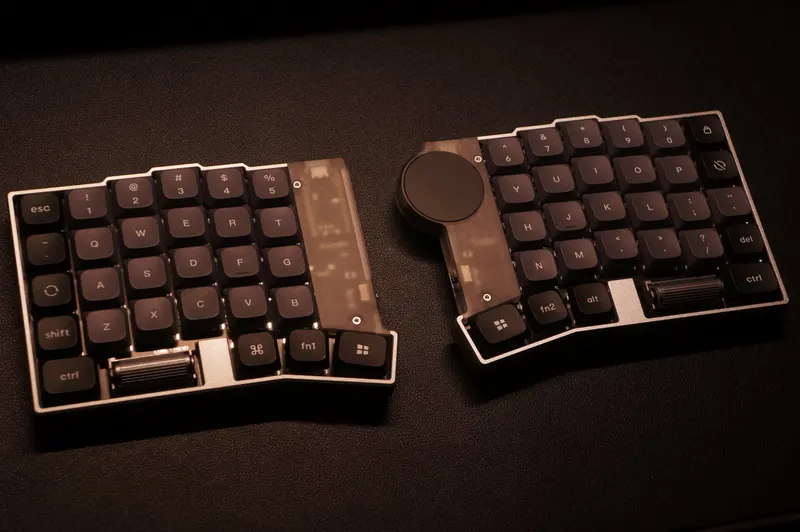

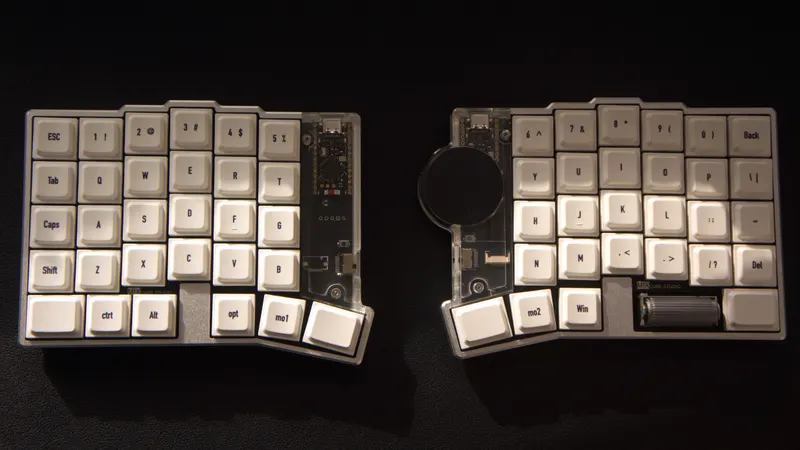

58-key split low-profile keyboard with an optional Cirque touchpad and metal rollers. Kailh Choc V2 hot-swap, QMK / ZMK / RMK firmware.

$269.00$299.00

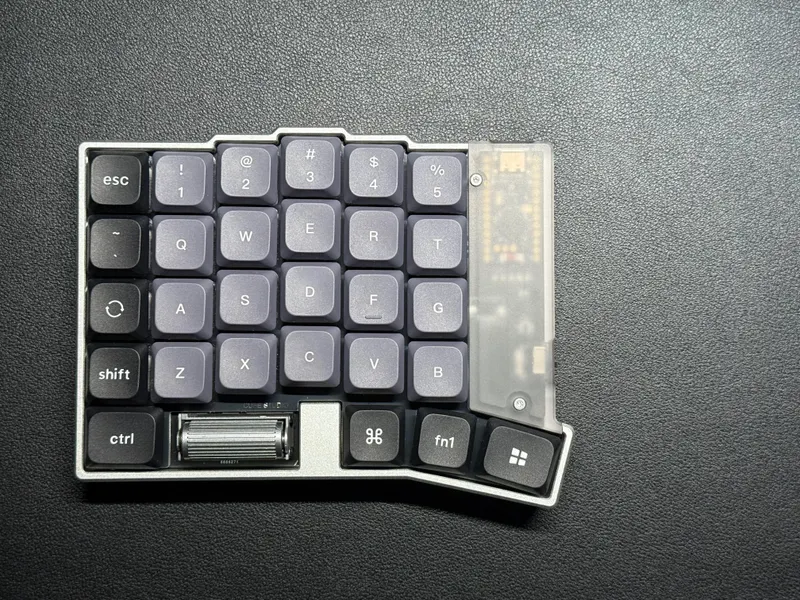

Case
Color
Touchpad
Roller

Each roller replaces 2 keys on its half. Same price either way.

Firmware

RMK doesn't support the Cirque touchpad, so it's only offered without one.

Keys
30 + 28
Firmware
ZMK
Central
Right
Edition
1

CNC aluminum · Silver · Kit · ZMK · Touchpad · Roller right · 58 keys

Shipping$25.00
Payment viaPayPal

Small board, nothing missing.

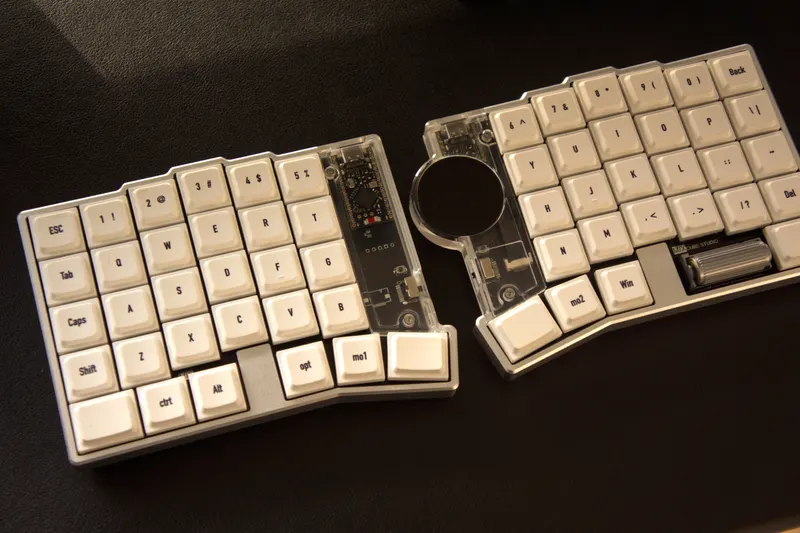

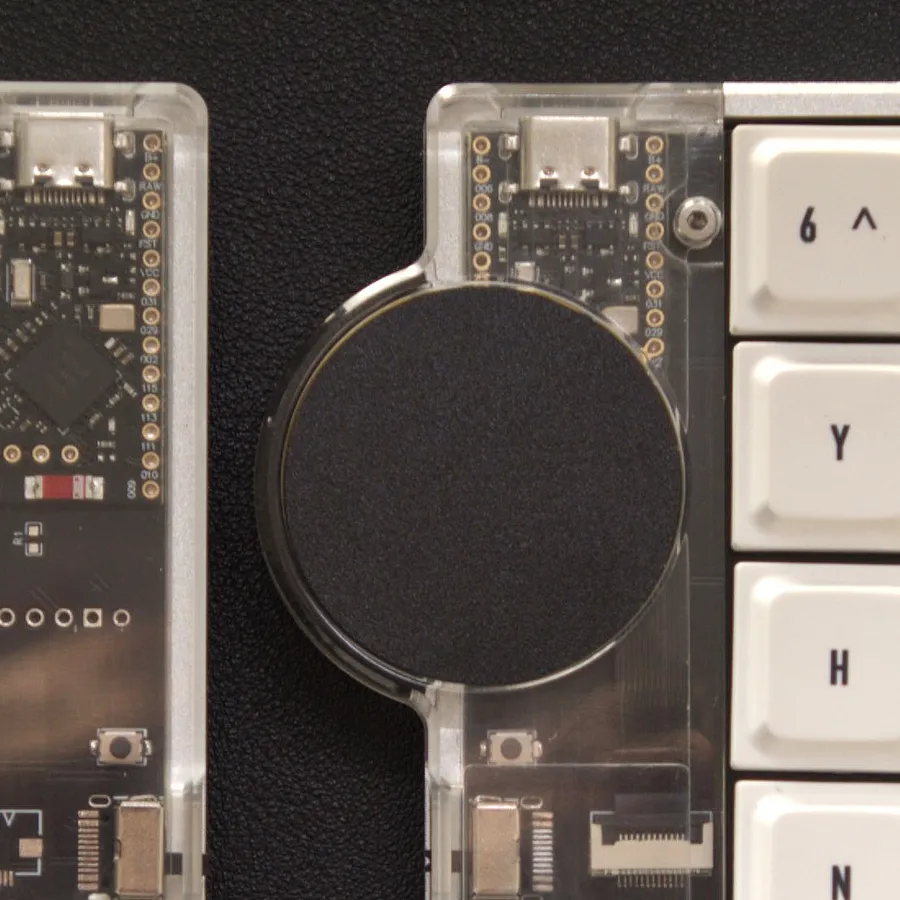

Built-in touchpad

Point, scroll and click without leaving home row.

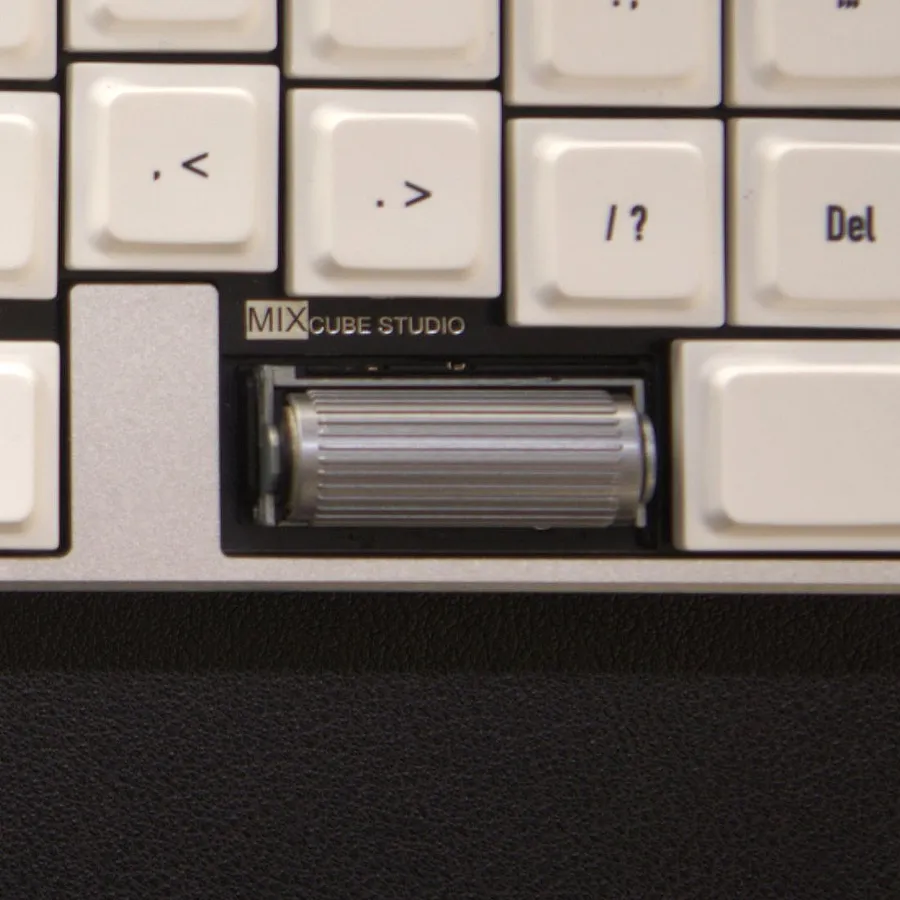

Precision roller

A knurled metal roller for scrolling, volume or any ZMK behavior.

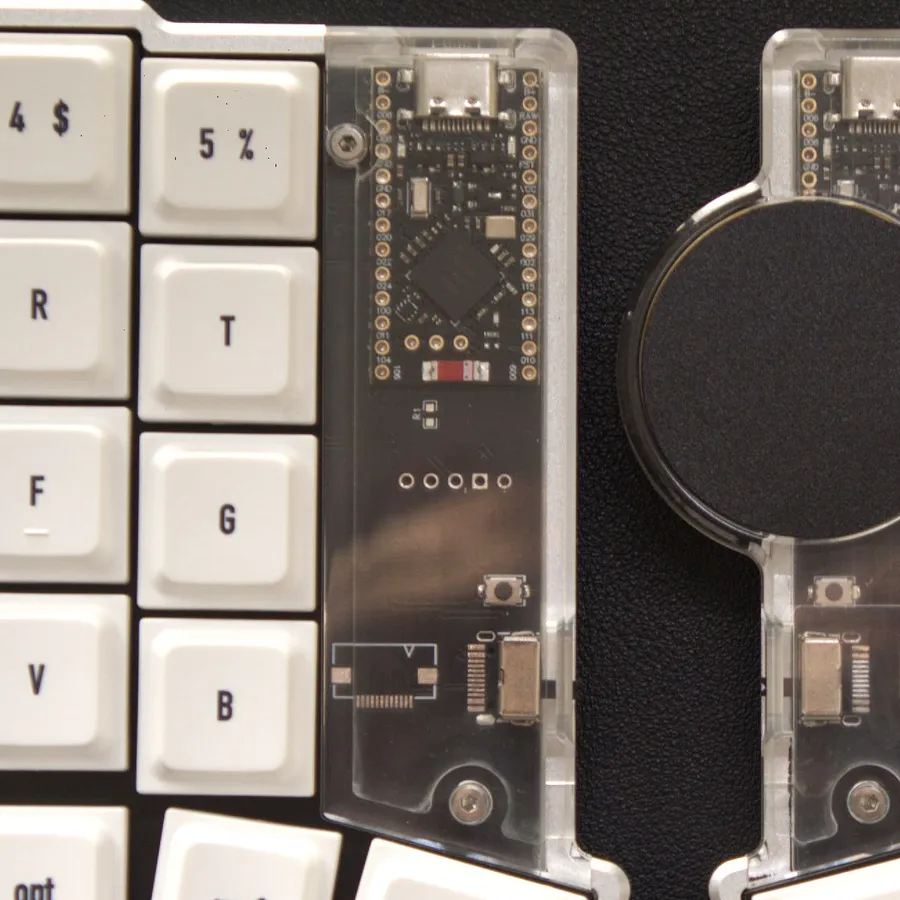

Clear controller cover

The controller stays visible and easy to service.

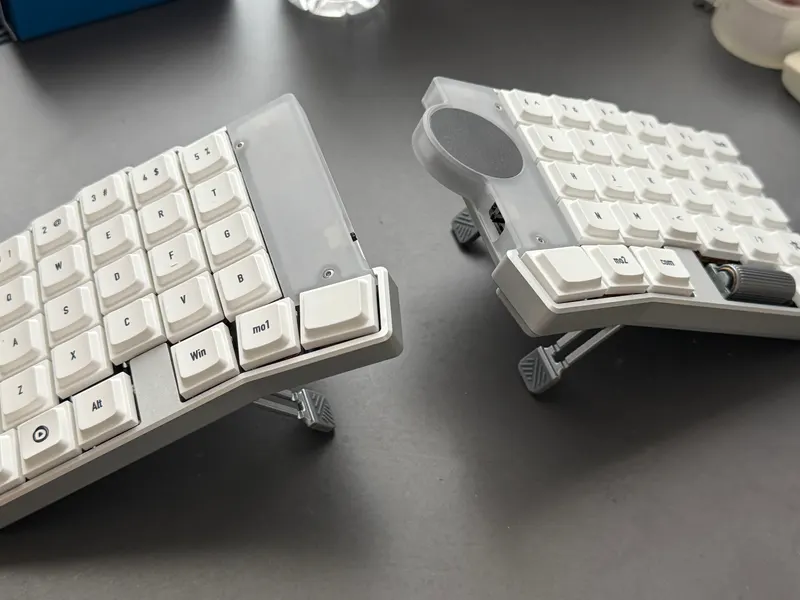

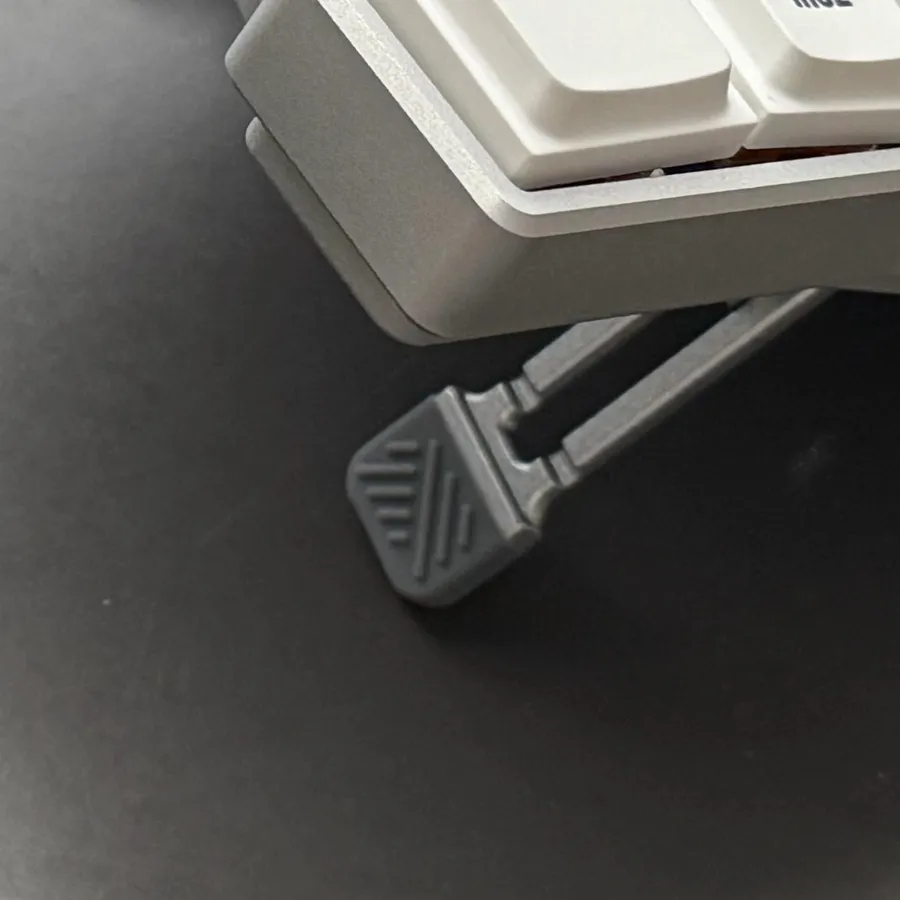

Fold-out tenting legs

Raise each half for a more natural wrist angle.

Every key where your fingers expect it.

Plan your keymap →

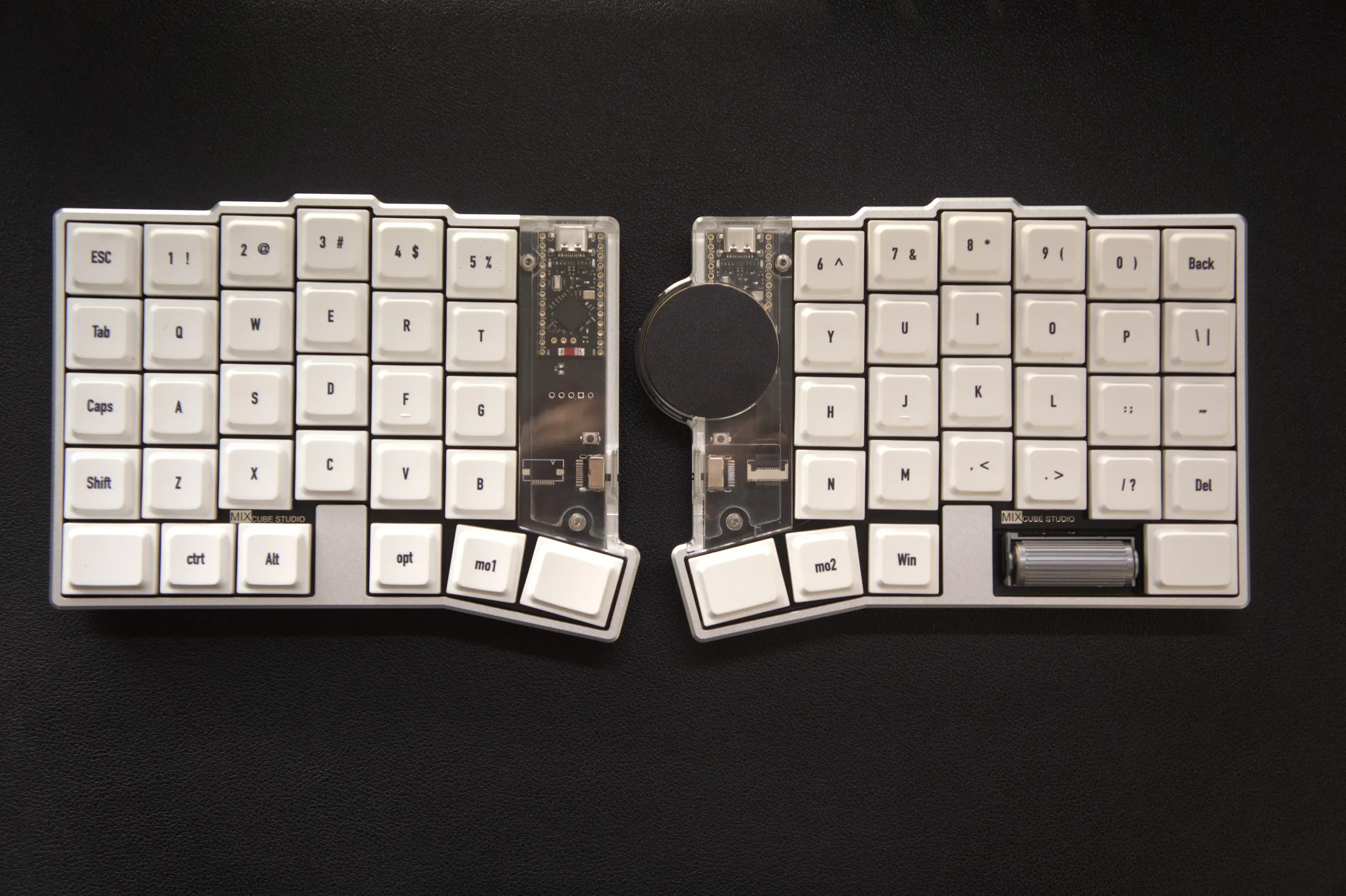

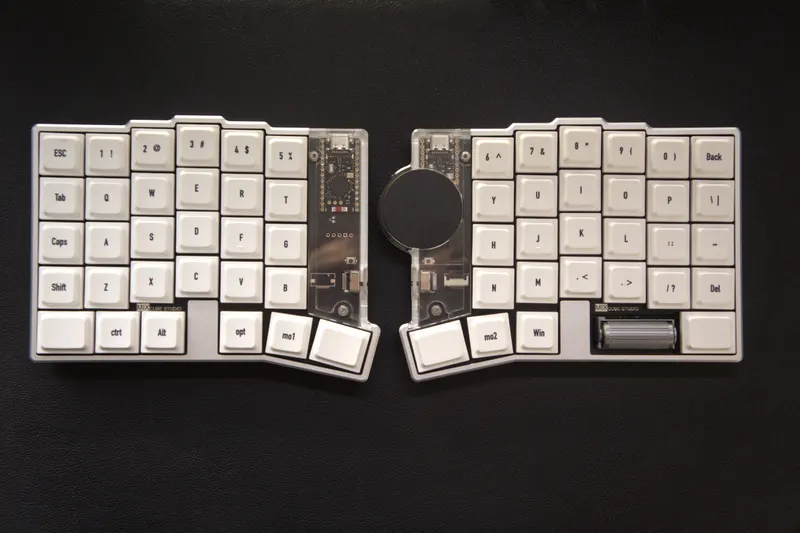

MIX top view

Specifications

Key count
58 (30 left + 28 right)
Switches
Kailh Choc V2 low-profile, hot-swap sockets
Firmware
ZMK — remap live with ZMK Studio
Connection
Bluetooth or USB-C wired, halves linked wirelessly
Central half
Right half
Controller
nRFMicro (nRF52840)
Pointing
Cirque touchpad, metal roller
Battery
1500 mAh per half, about 1–2 months per charge. Charge at 5 V 1 A (no fast charging).
Case
CNC aluminum bottom, CNC frosted acrylic top plate

Good to know

Which firmware should I choose?+
QMK is wired: the halves link with a USB-C to USB-C cable you can plug and unplug safely (no TRRS shorting), and you remap with Vial. ZMK and RMK are wireless: Bluetooth or USB-C to the computer, with the halves talking wirelessly. RMK doesn't support the Cirque touchpad, so it's only available without one.
Where should the roller go?+
Left, right, both or none — the price is the same. Each roller takes the place of 2 keys on its half; skip it and you get those 2 keys back. By default a left roller controls volume and a right roller scrolls; both can be remapped.
Kit or assembled — which should I pick?+
Pick the kit if you already own Choc V2 switches and keycaps or enjoy building. Pick assembled if you want to start typing right away.
Can I use regular MX switches?+
No. MIX is designed for Kailh Choc V2 low-profile switches.
How do I change my keymap?+
QMK and RMK remap live with Vial; ZMK has its own tools. See the remapping guide in the Wiki.
How much is shipping?+
Shipping is $25.00 per order.
