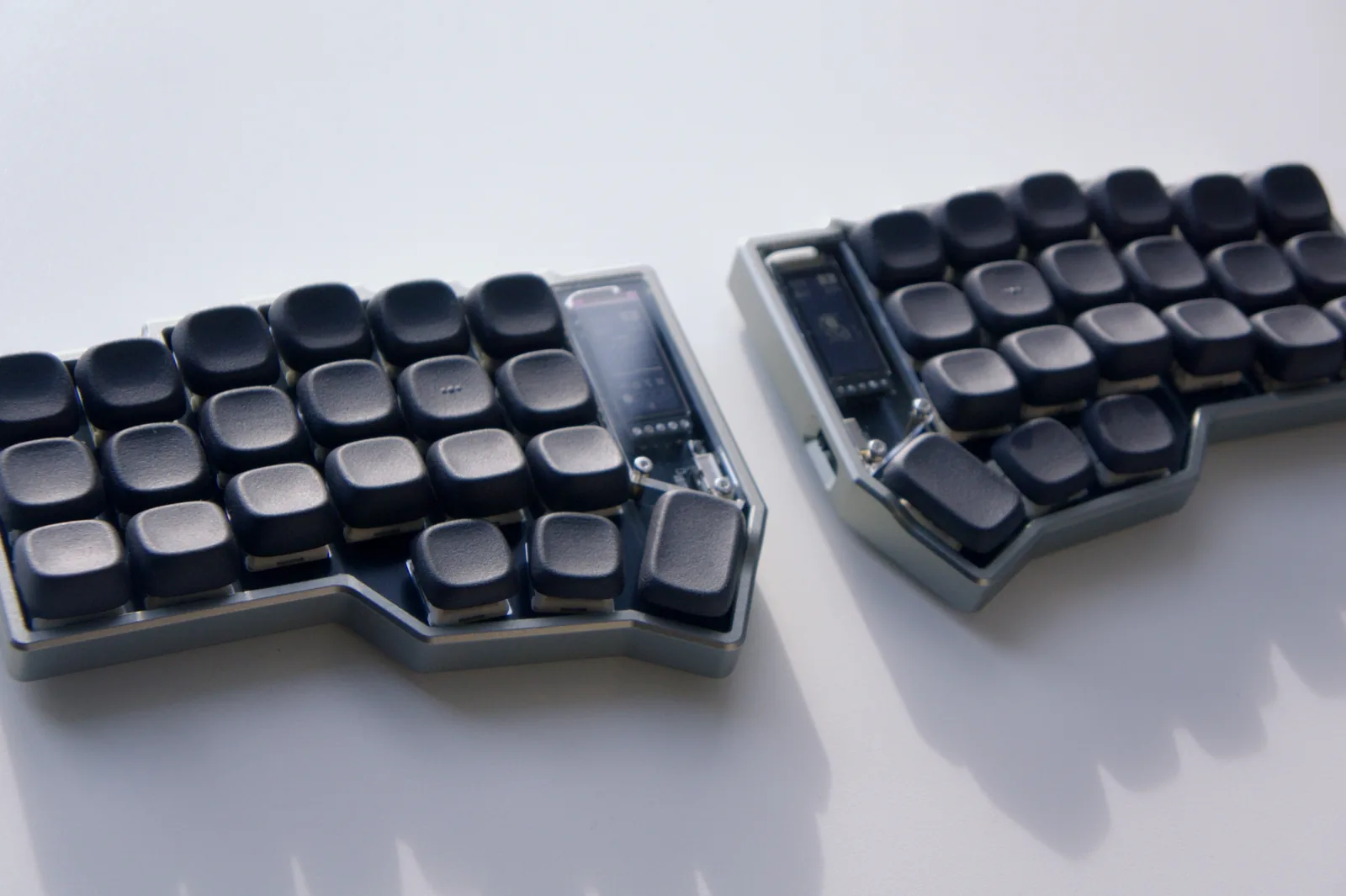

CORNE

The classic 42-key split in a CNC aluminum case, with two displays or none. Kailh Choc V2 hot-swap, QMK / ZMK / RMK firmware.

$289.00

Displays

Color

Firmware

nice!view displays run on ZMK only. Pick the OLED version for QMK or RMK.

Wireless split (ZMK / RMK)

BLE or USB-C to your computer, with a battery in each half. The two halves link wirelessly, with no cable between them.

Keys: 21 + 21
Displays: nice!view
Firmware: ZMK

Edition

CNC aluminum · Silver · 2 × nice!view · Kit · ZMK · wireless split · 42 keys

ShippingFree over $99 · from China

Dispatch10–15 business days after order

Warranty1 year, kit or assembled

Questionscubekb_studio@outlook.com

Duty-paid to Europe, the US, Japan and Korea: part of the import tax is added at checkout (Europe 12%; US, Japan, Korea 5%) and we cover the rest.

Payment viaPayPal

Hot-swap, every key
Swap Choc V2 switches anytime, no soldering.

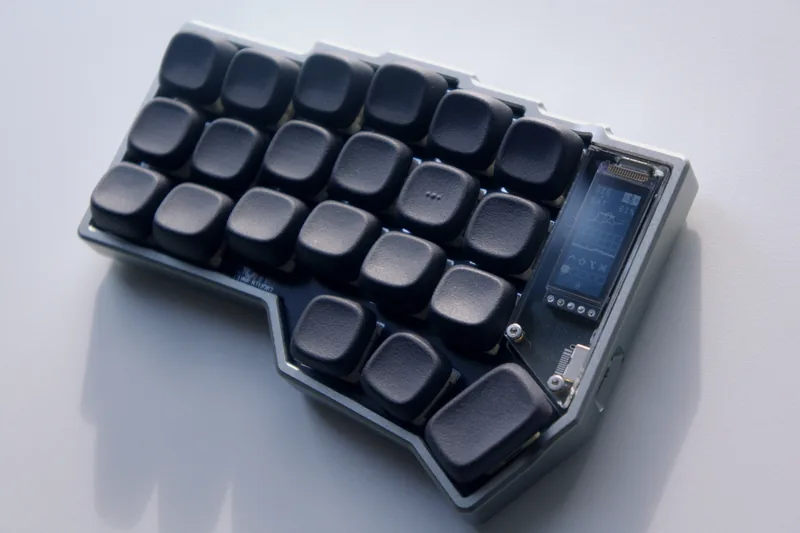

Two displays, optional
Layer, battery of both halves, connection, typing speed and Bluetooth profile.
Two layers of foam
1 mm Poron plate foam + 2 mm slotted bottom foam.

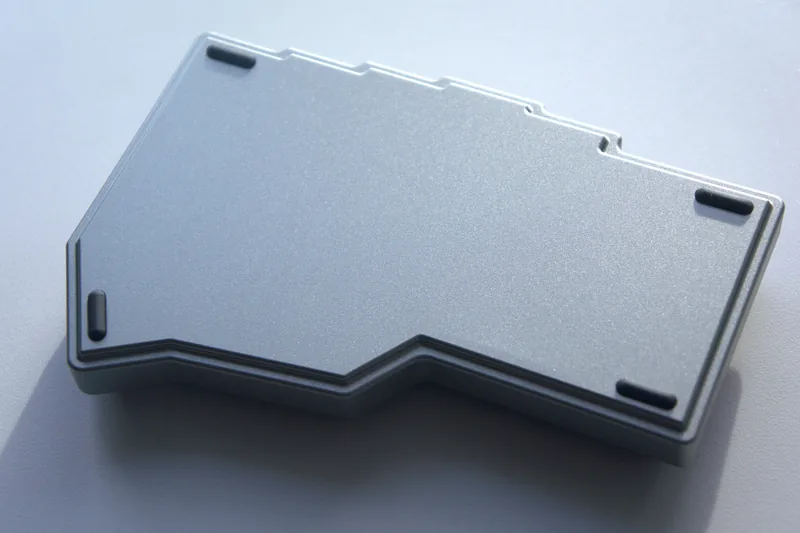

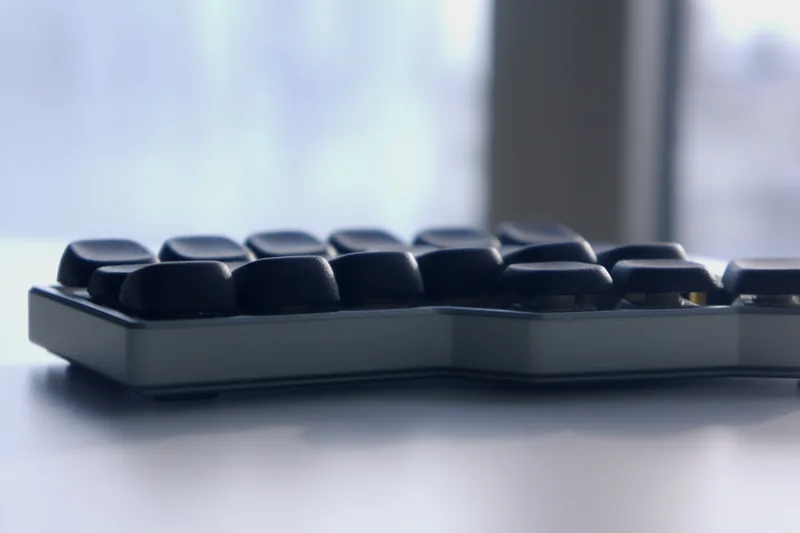

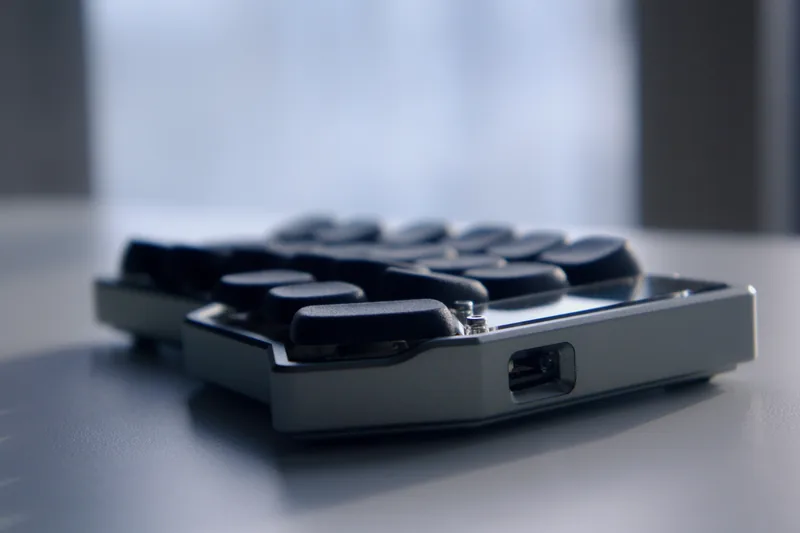

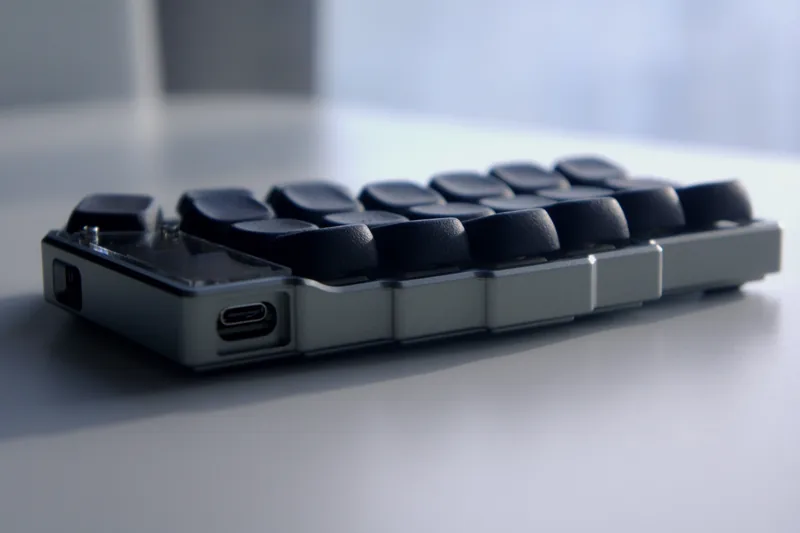

CNC aluminum case
Precision-machined, with a solid, premium feel.

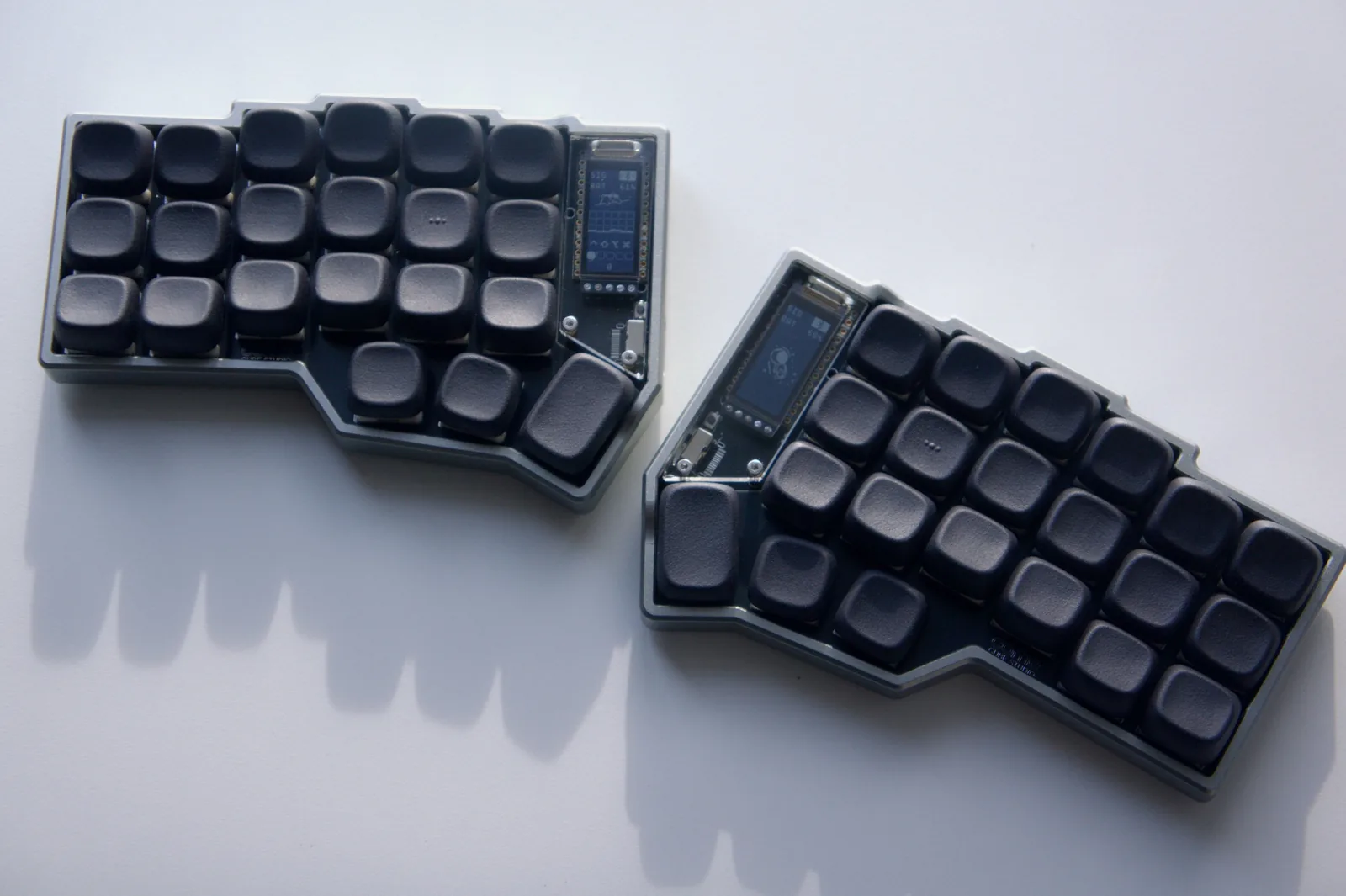

42 keys, column-staggered
Every key within a finger's reach of home row.
1.2 mm FR4 plate
Holds every switch firmly in place.

42 keys. Nothing out of reach.

Setup, remapping and firmware, step by step.

CORNE user guide

Specifications

Key count: 42 (21 left + 21 right)
Layout: 3 × 6 column-staggered, 3 thumb keys per half
Switches: Kailh Choc V2 low-profile, hot-swap sockets
Displays: 2 × nice!view
Firmware: ZMK — remap live with ZMK Studio
Connection: BLE or USB-C, halves linked wirelessly
Central half: Left half
Controller: nRFMicro (nRF52840)
Battery: 500 mAh per half, about 1 month per charge. Charge at 5 V 1 A (no fast charging).
Plate: 1.2 mm FR4
Foam: 1 mm Poron plate foam + 2 mm slotted bottom foam
Case: CNC aluminum

Good to know

nice!view, OLED or no displays?+

nice!view is a low-power memory LCD that suits a wireless board: it stays readable in daylight and barely touches the battery. It runs on ZMK only. The OLED version is $20 less and works with QMK, ZMK or RMK. Without displays it is $5 less again, with the same firmware choice.

Which firmware should I choose?+

QMK is wired: the halves link with a USB-C to USB-C cable you can plug and unplug safely (no TRRS shorting), and you remap with Vial. ZMK and RMK are wireless: Bluetooth or USB-C to the computer, with the halves talking wirelessly. ZMK remaps with ZMK Studio, RMK with Vial.

Kit or assembled — which should I pick?+

No soldering either way. The kit arrives soldered and assembled, with Poron plate foam and bottom foam already fitted — just press in your own Choc V2 switches and keycaps (no switches? add a box of 70 Kailh switches when you order). The assembled board comes with the Kailh switches you pick and LAK keycaps fitted, tested and ready to type on, for $50 more; KLP nylon-printed keycaps add another $30.

Can I use regular MX switches?+

No. This CORNE is built for Kailh Choc V2 low-profile switches.

How much is shipping?+

Free on orders over $99, so every CORNE ships free. Each order is prepared and shipped within 10–15 business days. Orders to Europe, the US, Japan and Korea ship duty-paid: part of the import tax is added at checkout (Europe 12%; US, Japan, Korea 5%), we cover the rest, and there's nothing more to pay on delivery.
